| 最小注文数量 : | 1セット | 価格 : | USD 1-10000/set |
|---|---|---|---|
| パッケージの詳細 : | ポリウッド | 受渡し時間 : | 30～50日 |
| 支払条件 : | L/C、T/T、D/P | 供給の能力 : | 10セット/月 |
| 起源の場所: | 中国 | ブランド名: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| 証明: | ISO, API | モデル番号: | K1セメントリテーナー |
|
詳細情報 |
|||
| サイズ範囲: | 4 1/2 インチ - 13 5/8 インチ | 使用圧力: | 10000 psi |
|---|---|---|---|
| 接続タイプ: | IF、EUE、CAS | 使用温度: | 400°Fまで |
| 最大圧量: | 10000 psi | 材料: | 鋳鉄 |
製品の説明

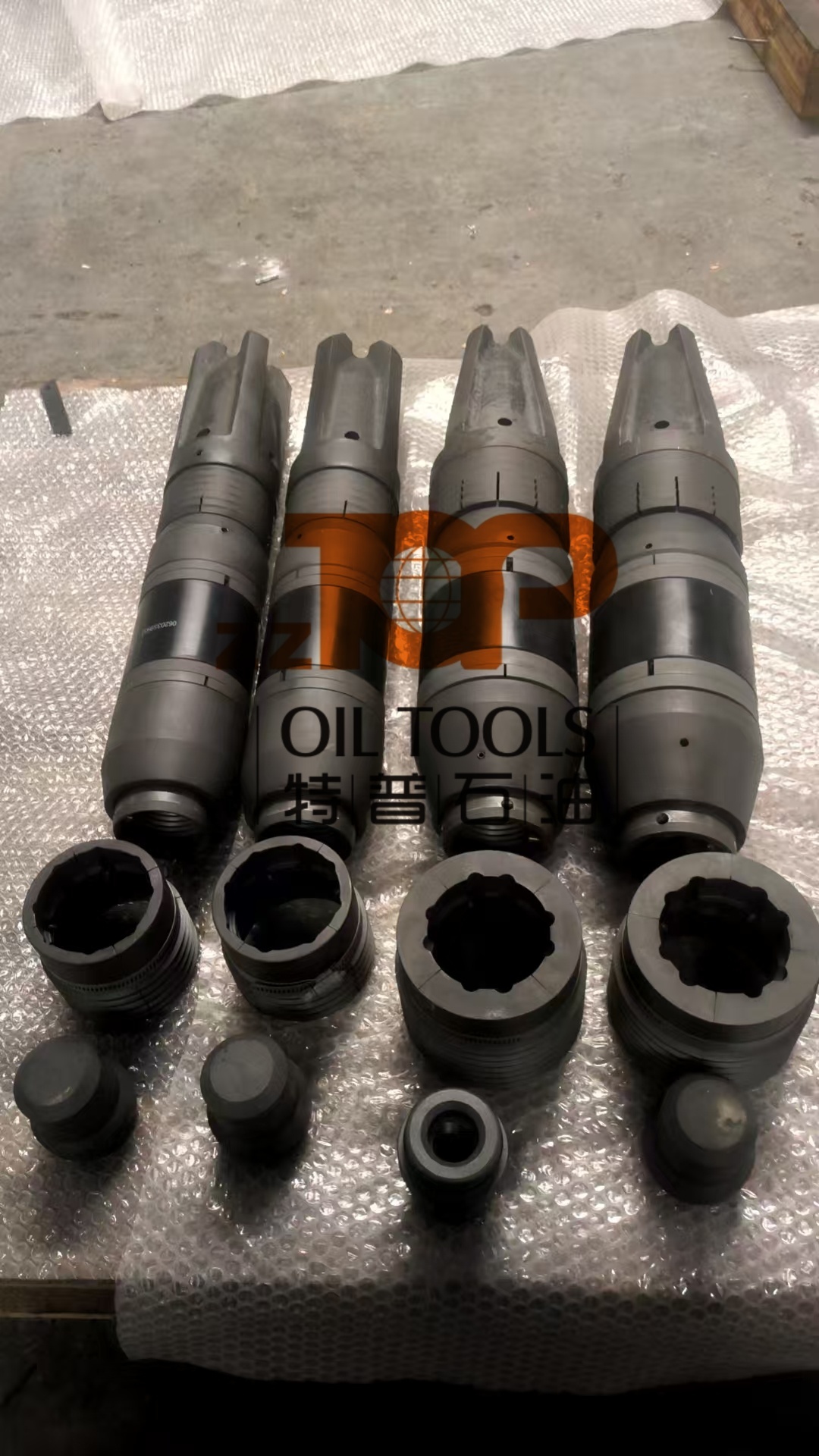

Drillable Cement Retainer With Mechanical Setting For Well Completion
The “K-1” Cement retainer is a high performance drillable cement Retainer ideal for most remedial cementing applications. The “K-1” was Designed to function as a drillable squeeze packer, after cementing, acts as a plug trapping squeeze pressure on the cement below the retainer and isolating the newly cemented area from the hydrostatic pressures above the cement retainer.
Features and Benefits:
Specification of Drillable Cement Retainer
| Casing OD (in) |
Casing Weight (lbs/ft) |
Setting Range Min (in) |
Setting Range Max (in) |
Max OD (in) |
Max Pressure Rating(PSI) |
|
| 1 | 4.500 | 9.5-16.9 | 3.740 | 4.090 | 3.593 | 10,000 |
| 2 | 5.000 | 11.5-21.4 | 4.126 | 4.560 | 3.937 | |
| 3 | 5.000 | 23.2-24.1 | 3.895 | 4.142 | 3.706 | |
| 4 | 5.500 | 13-23 | 4.580 | 5.044 | 4.312 | |
| 5 | 6.000 | 18-26 | 5.140 | 5.552 | 4.937 | |
| 6 | 6.625 | 17-32 | 5.595 | 6.135 | 5.370 | |
| 7 | 7.000 | 17-35 | 6.004 | 6.538 | 5.687 | |
| 8 | 7.625 | 20-39 | 6.625 | 7.125 | 6.312 | |
| 9 | 8.625 | 24-49 | 7.511 | 8.097 | 7.125 | |
| 10 | 9.625 | 29.3-58.4 | 8.435 | 9.063 | 8.120 | 8,000 |
| 11 | 10.750 | 32.76-60.7 | 9.660 | 10.192 | 9.438 | |
| 12 | 11.750 | 60-94 | 10.142 | 10.772 | 9.940 | 4,000 |
| 13 | 11.750 | 38-66.7 | 10.656 | 11.150 | 10.438 | |
| 14 | 13.375 | 48-85 | 12.159 | 12.715 | 11.880 | 3,000 |
| 15 | 16.000 | 65-118 | 14.570 | 15.250 | 14.125 |
